INV NO. 81
kVA 1000
Make Northern
HV 44000V
LV 600V
Vector Relay DY
Serial # 91-688
Type ONAN
Built 1991
Oil 1652 L
Weight 1415 Kg
Z% 5.9
Temp Rise 65 C
BIL HV 250 kV
BIL LV 45 kV
MFG Drawing # TB-5182
INV NO. 82
kVA 2500
Make Pioneer Electric
HV 276000
LV 600/347
Vector Relay YY
Serial # G10995-1
Type ONAN
Built 2000
Oil 2915 L
Weight 7180 kg
Z% 6
Temp Rise 65C
BIL HV 150
BIL LV —
MFG Drawing # G103B3831
INV NO. 83
kVA 2000
Make ABB
HV 27600
LV 480/277
Vector Relay DY
Serial # SBA7316-0101
Type RSL
Built 1993
Oil 456 G
Weight 11651 lb
Z% 5.84
Temp Rise 65
BIL HV 125
BIL LV 30
MFG Drawing # PC-1002

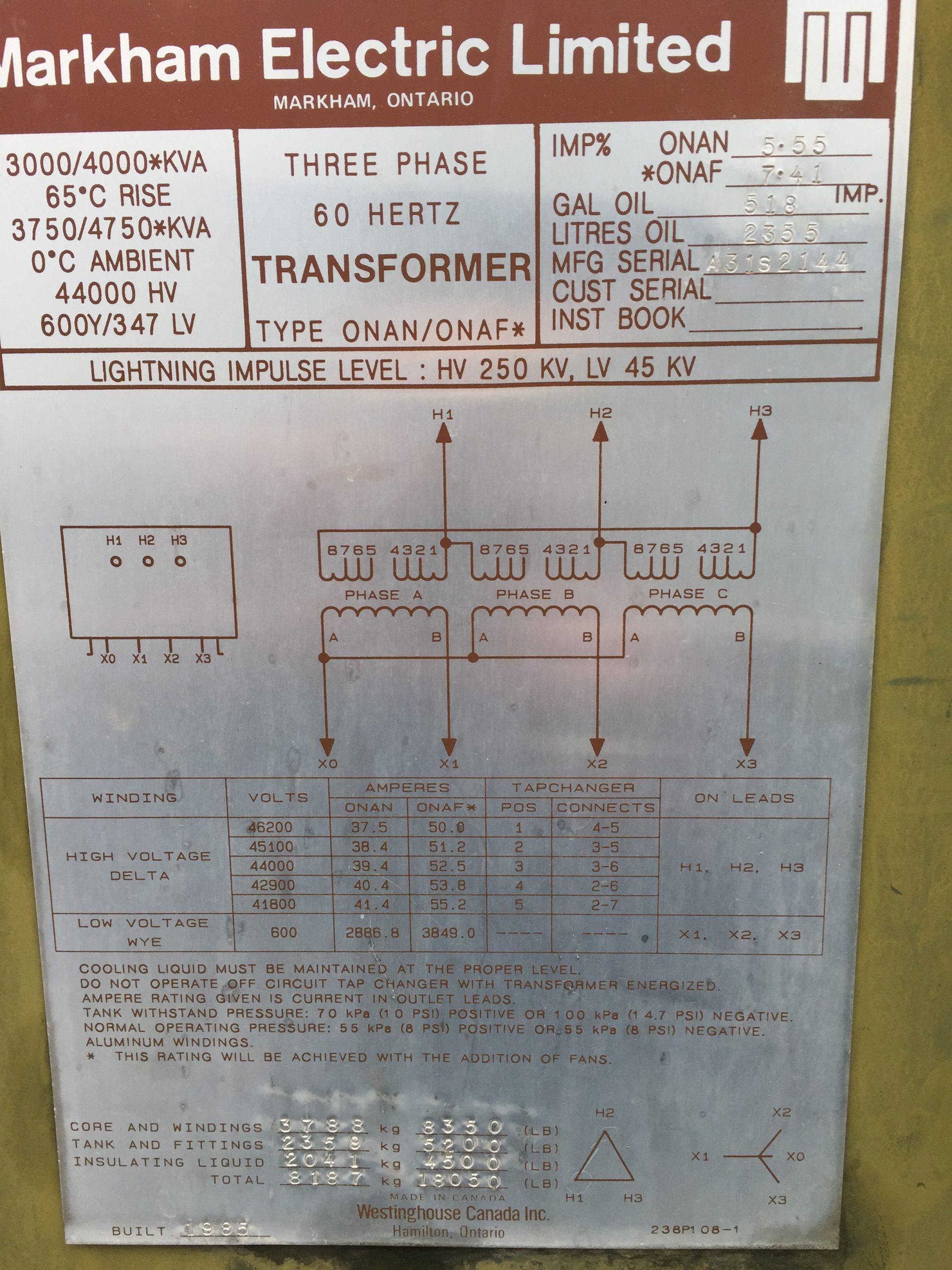

INV NO. 87
kVA 3000/4000
Make Westinghouse
HV 44000
LV 600/347
Vector Relay DY
Serial # A31S2144
Type ONAN/ONAF
Built 1985
Oil 518 Imp
Weight 18,050 lb
Z% 5.55 / 7.41
Temp Rise 65C
BIL HV 250
BIL LV 45
MFG Drawing #

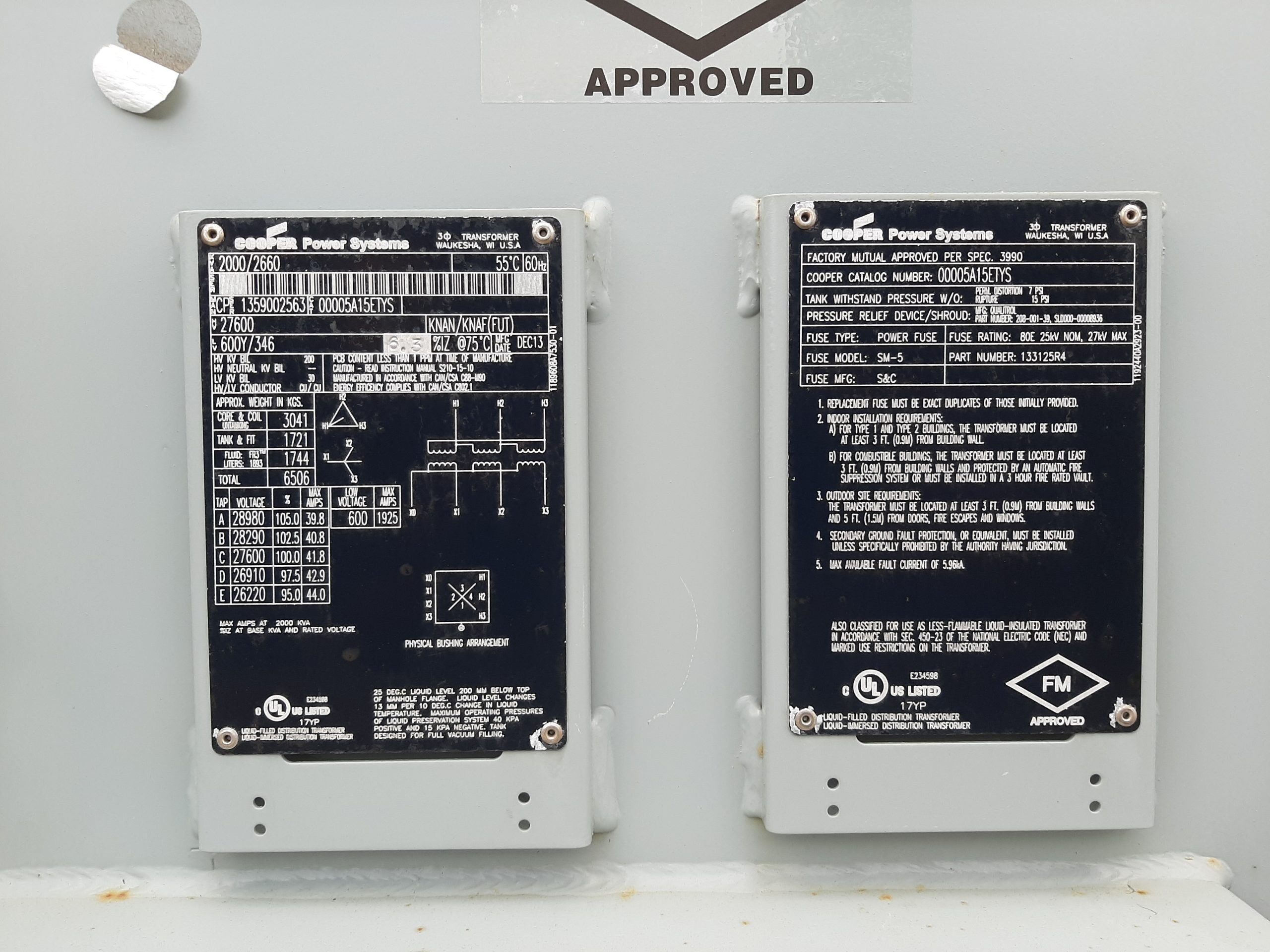

INV NO. 88
kVA 2000/2660
Make Cooper
HV 27600
LV 600/347
Vector Relay DY
Serial # 1359002563
Type KNAN/KNAF (FUT)
Built 2013
Oil 1893 L
Weight 6506 kg
Z% 6.3
Temp Rise 55C
BIL HV 200
BIL LV 30
MFG Drawing # 4241200B6017

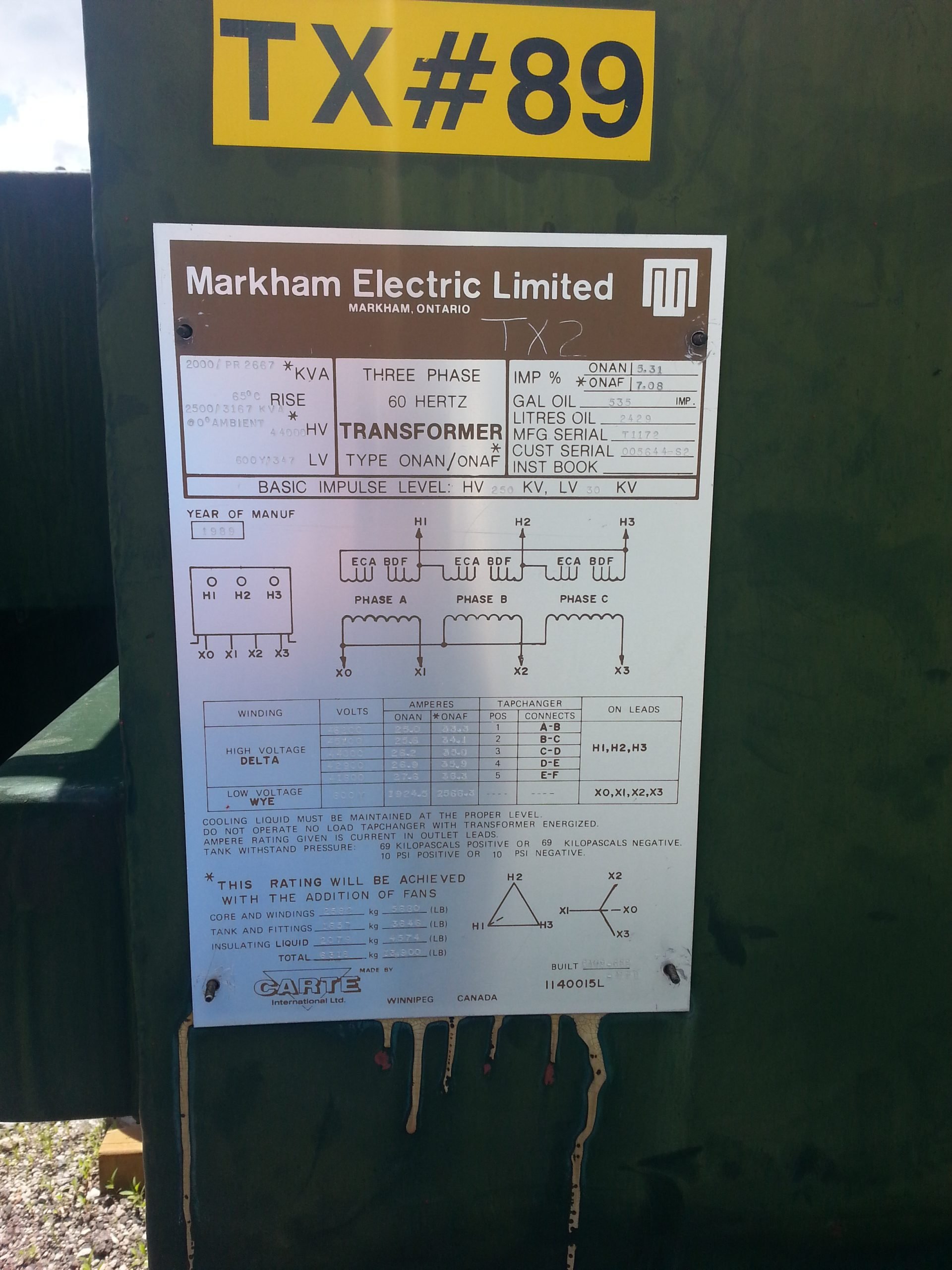

INV NO. 89
kVA 2000/2667
Make Carté
HV 44000
LV 600/347
Vector Relay DY
Serial # T1172
Type ONAN/ONAF
Built 1989
Oil 2429 L
Weight 13,900 lb
Z% 5.31 / 7.08
Temp Rise 65C
BIL HV 250
BIL LV 30
MFG Drawing # 1140015L

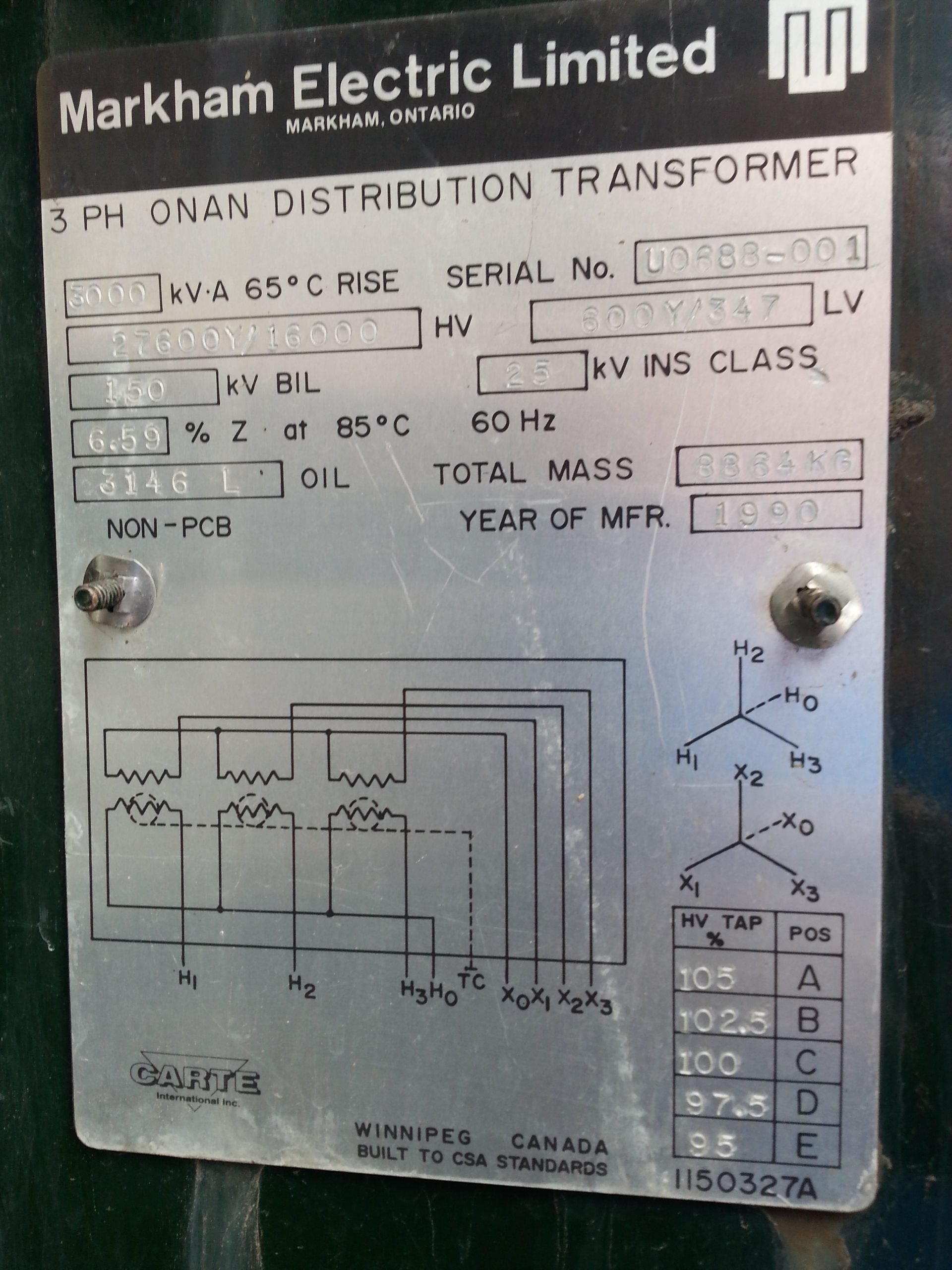

INV NO. 90
kVA 3000
Make Carté
HV 27600/16000
LV 600/347
Vector Relay YY
Serial # U0688-001
Type ONAN
Built 1990
Oil 3146 L
Weight 8864 kg
Z% 6.59
Temp Rise 65C
BIL HV 150
BIL LV 250
MFG Drawing # RD PR-4262-B-00

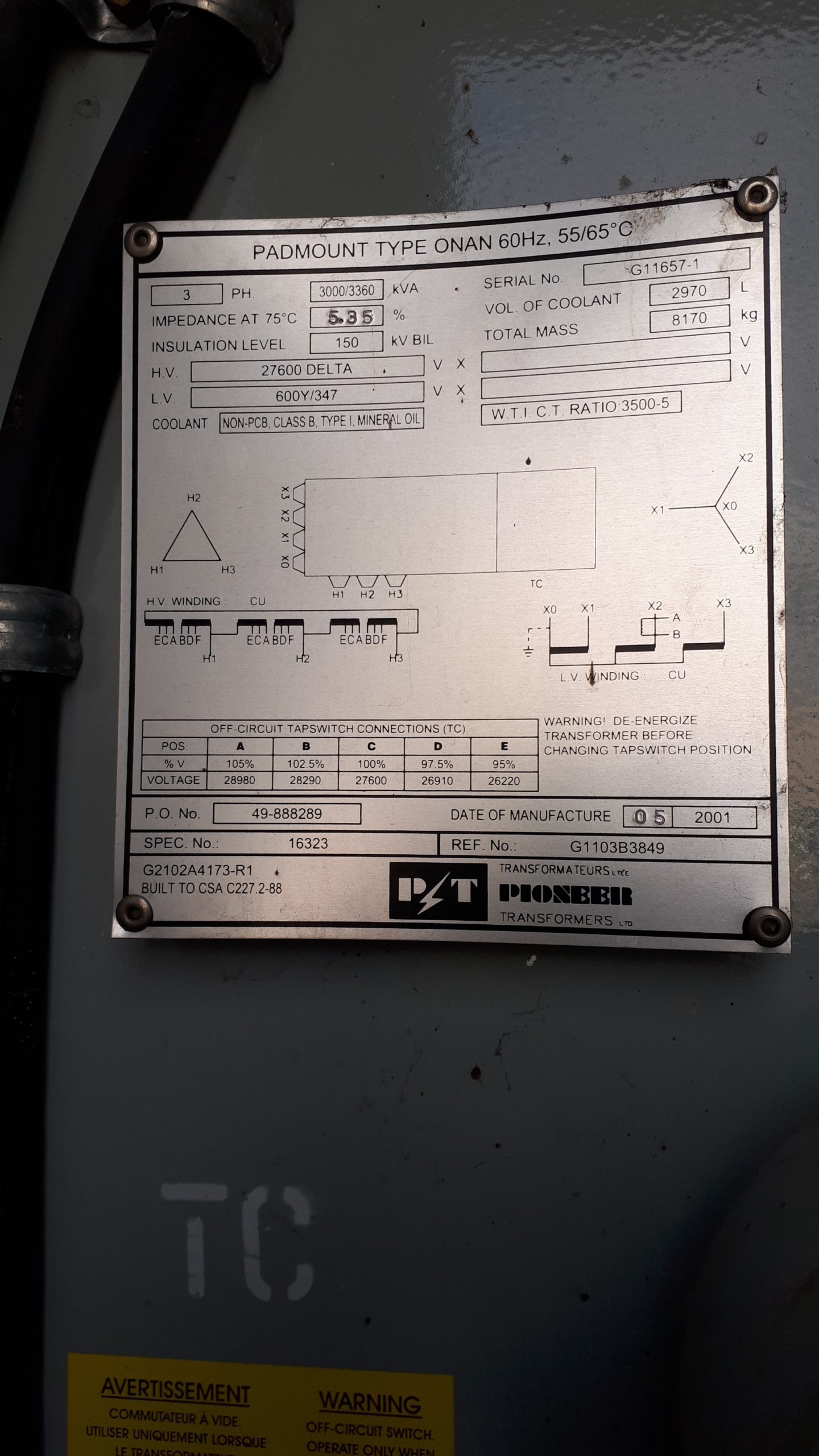

INV NO. 91
kVA 3000
Make Pioneer
HV 27600
LV 600/347
Vector Relay DY
Serial # G11657-1
Type ONAN
Built 2001
Oil 2970 L
Weight 8170 kg
Z% 5.35
Temp Rise 55C
BIL HV 150
BIL LV
MFG Drawing # G1103B3849
